We see a growing demand for better quality shots and grits. Awareness in respect to quality, consumption, timing and surface finishing is growing with end users. We, therefore import the best quality shots and grits from SINTO. End users data suggests a minimum of 40% reduction in consumption compared to other make shots and grits. Major improvements are observed in surface finish. Imported shots and grits conform to SAE J444, SAE J827, SAE J1993, ISO 11124-3, DIN 8201-2 and DIN 8201-3.

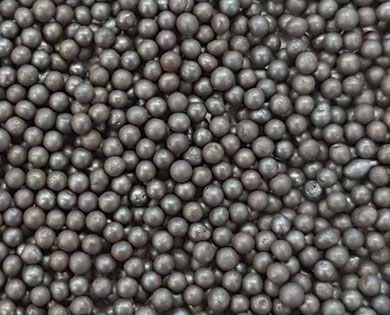

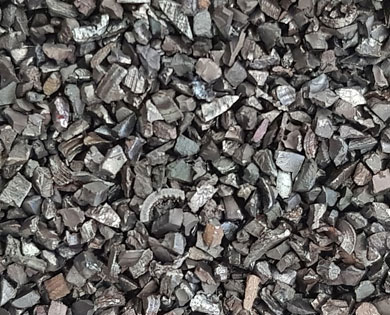

We are the authorized importer and distributors of SINTO make steel shots and grits in India. We stock all sizes and grades of Steel Shots and Steel Grits. Usually, hardness in steel shots is in the range of 40-50 HRC, however higher hardness steel shots are also available on order. In case of Steel Grits, GH (65 HRC) and GP (40-50 HRC) grades are ready in stock. Other hardness such as GL (50-55 HRC) is available on order.
| Mesh No. | Sieve (mm.) | Shot Number | |||||||||
| S-780 | S-660 | S-550 | S-460 | S-390 | S-330 | S-280 | S-230 | S-170 | S-110 | ||
| 7 | 2.800 | All pass | |||||||||
| 8 | 2.360 | All pass | |||||||||
| 10 | 2.000 | 85% min. | All pass | All pass | |||||||
| 12 | 1.700 | 97% min. | 85% min. | 5% max. | All pass | ||||||
| 14 | 1.400 | 97% min. | 85% min. | 5% max. | All pass | ||||||
| 16 | 1.180 | 97% min. | 85% min. | 5% max. | All pass | ||||||
| 18 | 1.000 | 97% min. | 85% min. | 5% max. | All pass | ||||||
| 20 | 0.850 | 96% min. | 85% min. | 10% max | All pass | ||||||
| 25 | 0.710 | 96% min. | 85% min. | 10% max | |||||||
| 30 | 0.600 | 96% min. | 85% min. | All pass | |||||||
| 35 | 0.500 | 97% min. | 10% max | ||||||||
| 40 | 0.425 | 85% min. | |||||||||
| 45 | 0.355 | 97% min. | |||||||||
| 50 | 0.300 | 80% min. | |||||||||
| 80 | 0.180 | 90% min. | |||||||||
| Mesh No. | Sieve (mm.) | Grit Number | ||||||||||
| G-10 | G-12 | G-14 | G-16 | G-18 | G-25 | G-40 | G-50 | G-80 | G-120 | If any | ||
| 7 | 2.800 | All pass | ||||||||||
| 8 | 2.360 | All pass | ||||||||||
| 10 | 2.000 | 80% min | All pass | |||||||||
| 12 | 1.700 | 90% min | 80% min | All pass | ||||||||
| 14 | 1.400 | 90% mi. | 80% min | All pass | ||||||||
| 16 | 1.180 | 90% min | 75% min | All pass | ||||||||
| 18 | 1.000 | 85% min | 75% min | All pass | ||||||||
| 20 | 0.850 | |||||||||||
| 25 | 0.710 | 85% min | 70% min | All pass | ||||||||
| 30 | 0.600 | |||||||||||
| 35 | 0.500 | |||||||||||
| 40 | 0.425 | 85% min | 70% min | All pass | ||||||||
| 45 | 0.355 | |||||||||||
| 50 | 0.300 | 70% min | 65% min | All pass | ||||||||
| 80 | 0.180 | 75% min | 65% min | |||||||||
| 120 | 0.125 | 75% min | 60% min | |||||||||
| 200 | 0.075 | 70% min | ||||||||||
