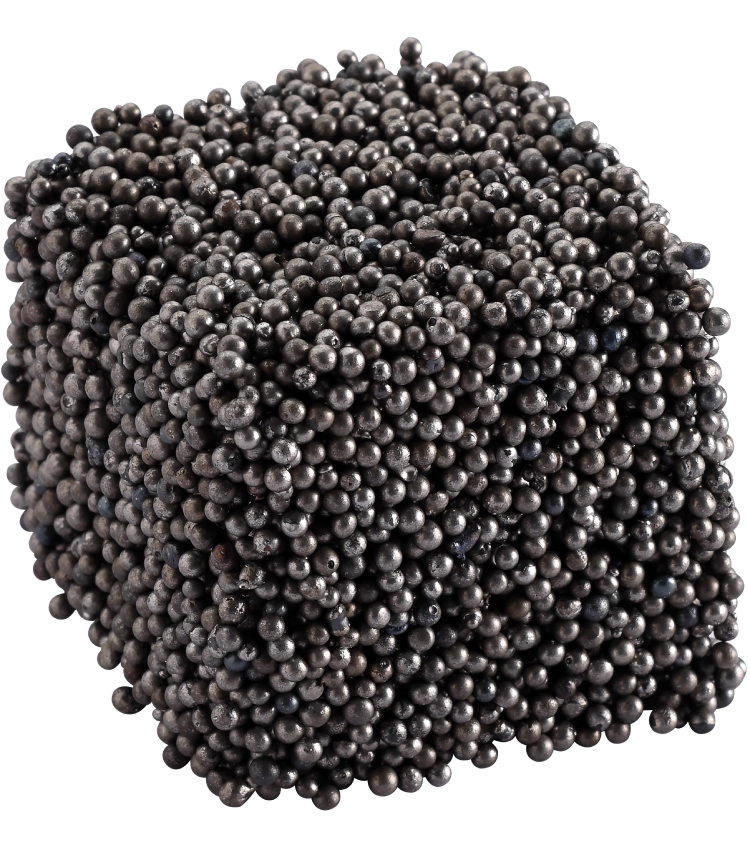

Low Carbon Steel Shots

Low Carbon Steel Shots are spherical metallic abrasives made from low-carbon steel scrap. They possess a bainitic microstructure, resulting in a softer and more durable material compared to high-carbon steel shots. This composition allows them to absorb more energy upon impact, leading to reduced machine wear and extended media lifespan.

TOSÇELİK GRANÜL uses the best alloy content scrap that it receives from the group companies in the low carbon steel shot production. Low carbon steel shot features increased impact absorbing capacity as the impact energy is distributed evenly on the shots. Structural properties of low carbon steel shot reaches increased hardness and thus offers better cleaning performance during usage. Since the production process does not require secondary heat treatment, perfect shots of bainitic structure are produced without cracks also resistant to impact and wear.

Industrial Application & Use Cases

Foundries

Removing sand residues, Investment Casting, Aluminium Die Casting.

Blasting

PEB Structure Blasting, Wire and Coil Blasting.

Automotive Industry

Surface preparation of components for painting or coating.

Railway Industry

Cleaning of bogie parts and other components.

Wind Power

Surface treatment of turbine parts and towers.

Shipbuilding

Cleaning of steel plates and structures.

Advantages

Specifications

Sizes	0.18 mm to 2.40 mm
Shapes	Spherical
Specifications	SAE J444, SAE J827, SAE J1993, ISO 11124-3, DIN 8201-2 and DIN 8201-3
Sieve Analysis	SAE J444, SAE J827
Chemical Properties	Carbon	0.10% to 0.15%
	Silicon	0.10% to 0.25%
	Manganese	1.20% to 1.50%
	Sulphur	0.035% Max.
	Phosphorus	0.035% Max.
Microstructure	Bainitic
Hardness Range	New Shot : 423 - 435 HV
	Operating Mix : 471 - 512 HV
Hardness Deviation	±20 HV
Density	~7.0 g/cm³
Packaging	25 kg	Bag
	1000 kg	Jumbo Bag, Pellet, Drum

*Other sizes, hardness and packaging available on request.
